HPCV and Other Specialty Valves

IBR

Instrument Bleed Ring Assemblies and Accessories

IBR

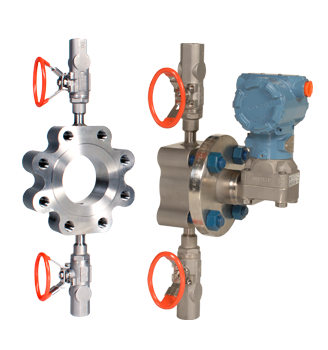

The Aegis® IBR (Instrument Bleed Ring Assemblies) valves are specifically engineered for applications where environmentally safe draining of process fluid is critical prior to the removal of the level or pressure transmitters. Our patent pending dead-space free design is dimensioned to directly adapt to direct mounted and remote diaphragm seals transmitters thus eliminating the need for unnecessary connections and potential leak paths.
Dimensions
Specifications
IBR Valve Standard Features
Application Reliable Isolation & Evacuation of Process Fluids Prior to Transmitter Removal
Standards 16.5, 16.34, API 598
Size 2"-4"
Body Material  A351 CF3M
Trim 316SS
Temperature Rating -40˚F to 400˚F
Pressure Rating 275 PSIG, 720 PSIG
Process Sealing Gas Tested, Bubble Tight per API 598
Stem Sealing Dynamically Loaded PTFE Chevron Packing
Connection Type ASME 150#, 300#, 600#
Control Characteristics N/A
Flow Direction Bi-Directional
Dimensions Any dimensions on this site or in literature are for reference only and not to be used for construction
Design Benefits
Other sizes may be available!
Other Materials may  be available such as Monel and Hastelloy!
Environmentally Safe, In Field Draining and Calibrating of Pressure Transmitter,
Enables Safe and Easy Removal of Pressure Transmitters,
Innovative Patent Pending Body Profile Designed to Reduce Weight and Piping Stress,
Complete Elimination of Threaded Connections,
Vent and Drain Valves equip with Lockable Oval Hand wheels,
Maintenance Free Design
Applicable Standards
ASME B16.5 - Standard Flange Dimensions
ASME B16.34 - Valve Body Minimum Wall Thickness
API 598 - Details for the Testing and Inspection Requirements for Gate, Globe, Plug, Ball, Check, and Butterfly Valves
MSS SP-25 - Standard Marking Systems for Valves
Chlorine Institute Pamphlet #6 - Piping Systems for Dry Chlorine
